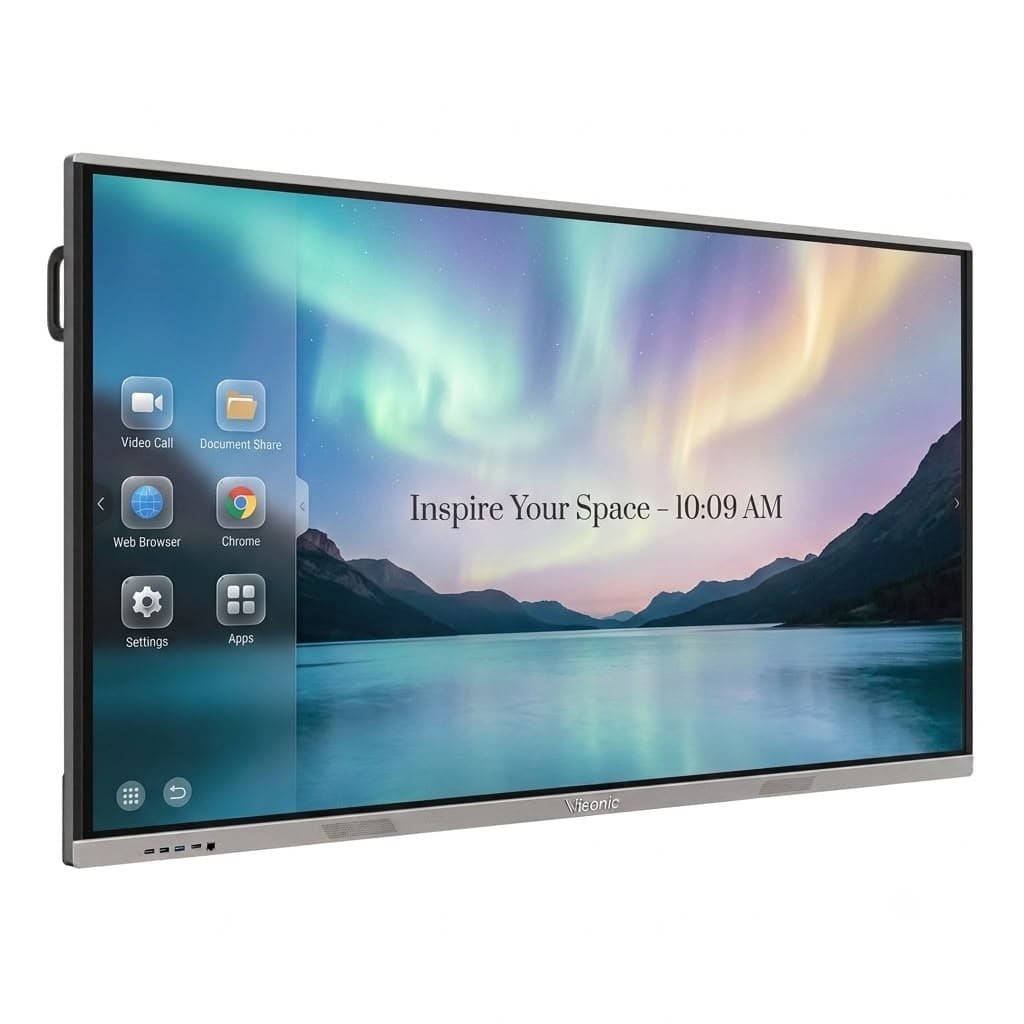

86" Smart Board - Interactiv Flat Panel Disply ( IFP )
$2560.00
86" Interactive Flat Panel Display (IFP)
Brand: Visonic
Model: SGD86T9
Dual Operating System: Android & Windows
Premium Construction
- Aluminum alloy outer frame with sandblasted and anodized finish
- Iron shell back cover with metallic texture
- Excellent active heat dissipation
- Professional-grade industrial build quality
Key Features
- 86" 4K UHD IPS Display (3840 × 2160)
- Android 16.0 (Google EDLA Certified)
- Windows 11 Genuine Support
- Visonic Ultra-HD LED Panel
- 40-point Infrared Touch
- Built-in 2 × 25W Stereo Speakers
- 4mm Full Tempered Explosion-proof Glass
- Wall-mount bracket included
Display Specifications
| Specification | Details |
|---|---|
| Screen Size | 86 inches |
| Resolution | 3840 × 2160 (4K UHD) |
| Brightness | 400–450 nits |
| Contrast Ratio | 5000:1 |
| Viewing Angle | 178° (H) / 178° (V) |
| Color Depth | 16.7 Million Colors |
| Response Time | 8 ms |
| Refresh Rate | 4K @ 30Hz |
| Backlight | DLED (Direct-lit LED) |
| Active Area | 2157.9 × 1213.35 mm |
Touch & Audio Parameters
- Touch Technology: Infrared Induction Recognition
- Touch Points: 40-point touch
- Input Methods: Finger, stylus, or non-transparent object ≥5mm
- Cursor Speed: 120 points/s
- Position Accuracy: ±2mm
- Response Time: ≤15ms
- Driver-free Plug & Play
- Audio Output: 2 × 25W 3D Stereo
- Communication Port: USB Type-B
Android System Configuration
| Component | Specification |
|---|---|
| Operating System | Android 16 |
| Processor | Amlogic T982 |
| RAM | 8GB DDR4 |
| Storage | 128GB eMMC |
OPS Computer (Optional)
- Intel Core i5 (10th / 13th / 14th Generation)
- 16GB DDR4 / DDR5 RAM
- 512GB / 1TB SSD
- Intel HD Graphics
- LAN, USB 3.0, USB 2.0, HDMI, VGA, LINE-OUT
Android 16 Advantage
Android 16 improves:
- Memory management under heavy AI workloads
- On-device AI processing speed
- 4K graphics pipeline efficiency
- Multi-touch responsiveness
- Overall classroom and boardroom workflow
Real-World Performance
In classrooms and boardrooms, Android 16 delivers noticeably faster AI responses, smoother interaction, and fewer interruptions during teaching, presentations, and collaborative sessions compared with Android 14.
Included Software
- Bytello Class educational presentation software
- Bytello Share wireless screen sharing
- OfficeSuite office application
- Bytello DMS remote management software (optional)
- mozaBook CLASSROOM (optional / Windows)
Protection & Durability
- 4mm tempered explosion-proof glass
- 7H–9H anti-glare scratch-resistant surface
- Lifespan ≥ 50,000 hours
Mounting
- VESA: 1000 × 400 mm
- Mounting Style: Wall mount bracket included
Physical Dimensions
| Dimension | Size |
|---|---|
| Total Width | 2216.2 mm |
| Total Height | 1316.6 mm |
| Total Thickness | 106.7 mm |
| Front Bezel Thickness | 25.6 mm |
| Display Width | 2157.9 mm |
| Display Height | 1213.35 mm |
Standard Included Accessories
- Touch Stylus Pens
- Remote Control
- Power Cord (1.5m)
- User Manual
- Warranty Card
- Certificate of Conformity
Ideal Applications
- Smart Classrooms
- Universities & Training Centers
- Corporate Meeting Rooms
- Boardrooms
- Conference Halls
- Interactive Collaboration Spaces
